Fühler im Netz – das Verteilnetz in der energetischen Zukunft

[/fusion_title][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=“no“ hundred_percent_height=“no“ hundred_percent_height_scroll=“no“ hundred_percent_height_center_content=“yes“ equal_height_columns=“no“ menu_anchor=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ status=“published“ publish_date=““ class=““ id=““ link_color=““ link_hover_color=““ border_size=““ border_color=““ border_style=“solid“ margin_top=““ margin_bottom=““ padding_top=““ padding_right=““ padding_bottom=““ padding_left=““ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_position=“center center“ background_repeat=“no-repeat“ fade=“no“ background_parallax=“none“ enable_mobile=“no“ parallax_speed=“0.3″ background_blend_mode=“none“ video_mp4=““ video_webm=““ video_ogv=““ video_url=““ video_aspect_ratio=“16:9″ video_loop=“yes“ video_mute=“yes“ video_preview_image=““ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″][fusion_builder_row][fusion_builder_column type=“1_2″ layout=“1_2″ spacing=““ center_content=“no“ link=““ target=“_self“ min_height=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ hover_type=“none“ border_size=“0″ border_color=““ border_style=“solid“ border_position=“all“ border_radius=““ box_shadow=“no“ dimension_box_shadow=““ box_shadow_blur=“0″ box_shadow_spread=“0″ box_shadow_color=““ box_shadow_style=““ padding_top=““ padding_right=““ padding_bottom=““ padding_left=““ margin_top=““ margin_bottom=““ background_type=“single“ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_image_id=““ background_position=“left top“ background_repeat=“no-repeat“ background_blend_mode=“none“ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““ filter_type=“regular“ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″ last=“no“][fusion_text columns=““ column_min_width=““ column_spacing=““ rule_style=“default“ rule_size=““ rule_color=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““]

Motivation

Die starke Zunahme dezentraler Anlagen, die Strom aus erneuerbaren Energiequellen in das lokale Verteilnetz einspeisen, geht mit einem erhöhten Bedarf an Steuerung und Überwachung einher. Da die Sonne nicht immer scheint und der Wind selten gleichmäßig weht, kann durch die daraus resultierende fluktuierende Stromeinspeisung die Netzstabilität negativ beeinflusst und die Versorgungssicherheit gefährdet werden.

Obwohl die detaillierte Erfassung des Netzzustandes im Nieder- und Mittelspannungsbereich unabdingbar ist, um Anlagen- und Netzstörungen frühzeitig zu erkennen, werden sie im Gegensatz zu den Transportnetzen bisher kaum kontinuierlich überwacht: Oftmals sind teure Messverfahren notwendig, die nur Momentaufnahmen erfassen. So besteht die Gefahr, dass kritische Netzzustände, schleichende Veränderungen oder Defekte bei Kundenanlagen zu spät erkannt werden.

„Fühler im Netz“-Animation ansehen

[/fusion_text][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=“no“ hundred_percent_height=“no“ hundred_percent_height_scroll=“no“ hundred_percent_height_center_content=“yes“ equal_height_columns=“no“ menu_anchor=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ status=“published“ publish_date=““ class=““ id=““ link_color=““ link_hover_color=““ border_size=““ border_color=““ border_style=“solid“ margin_top=““ margin_bottom=““ padding_top=““ padding_right=““ padding_bottom=““ padding_left=““ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_position=“center center“ background_repeat=“no-repeat“ fade=“no“ background_parallax=“none“ enable_mobile=“no“ parallax_speed=“0.3″ background_blend_mode=“none“ video_mp4=““ video_webm=““ video_ogv=““ video_url=““ video_aspect_ratio=“16:9″ video_loop=“yes“ video_mute=“yes“ video_preview_image=““ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″][fusion_builder_row][fusion_builder_column type=“1_1″ layout=“1_1″ spacing=““ center_content=“no“ link=““ target=“_self“ min_height=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ hover_type=“none“ border_size=“0″ border_color=““ border_style=“solid“ border_position=“all“ border_radius=““ box_shadow=“no“ dimension_box_shadow=““ box_shadow_blur=“0″ box_shadow_spread=“0″ box_shadow_color=““ box_shadow_style=““ padding_top=““ padding_right=““ padding_bottom=““ padding_left=““ margin_top=““ margin_bottom=““ background_type=“single“ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_image_id=““ background_position=“left top“ background_repeat=“no-repeat“ background_blend_mode=“none“ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““ filter_type=“regular“ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″ last=“no“][fusion_tagline_box content_alignment=“left“ link=““ button=““ linktarget=“_self“ modal=““ button_size=““ button_type=““ button_border_radius=““ buttoncolor=“default“ title=““ description=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ backgroundcolor=“#c4ced4″ shadow=“no“ shadowopacity=“0.70″ border=“1″ bordercolor=““ highlightposition=“left“ margin_top=““ margin_bottom=““ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““]

BPL stellt eine attraktive Kommunikationstechnologie für Smart Grids dar, denn mit BPL wachsen Stromversorgungs- und Telekommunikationsnetze intelligent zusammen“

Prof. Dr.-Ing. Markus Zdrallek von der Bergischen Universität Wuppertal.

[/fusion_tagline_box][fusion_separator style_type=“none“ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ sep_color=““ top_margin=“50″ bottom_margin=““ border_size=““ icon=““ icon_size=““ icon_circle=““ icon_circle_color=““ width=““ alignment=“center“ /][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=“no“ hundred_percent_height=“no“ hundred_percent_height_scroll=“no“ hundred_percent_height_center_content=“yes“ equal_height_columns=“no“ menu_anchor=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ status=“published“ publish_date=““ class=““ id=““ link_color=““ link_hover_color=““ border_size=““ border_color=““ border_style=“solid“ margin_top=““ margin_bottom=“50″ padding_top=““ padding_right=““ padding_bottom=“50″ padding_left=““ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=“#c4ced4″ background_image=““ background_position=“center center“ background_repeat=“no-repeat“ fade=“no“ background_parallax=“none“ enable_mobile=“no“ parallax_speed=“0.3″ background_blend_mode=“none“ video_mp4=““ video_webm=““ video_ogv=““ video_url=““ video_aspect_ratio=“16:9″ video_loop=“yes“ video_mute=“yes“ video_preview_image=““ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″][fusion_builder_row][fusion_builder_column type=“1_2″ layout=“1_2″ spacing=““ center_content=“no“ link=““ target=“_self“ min_height=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ background_image_id=““ hover_type=“none“ border_size=“0″ border_color=““ border_style=“solid“ border_position=“all“ border_radius_top_left=““ border_radius_top_right=““ border_radius_bottom_right=““ border_radius_bottom_left=““ box_shadow=“no“ box_shadow_vertical=““ box_shadow_horizontal=““ box_shadow_blur=“0″ box_shadow_spread=“0″ box_shadow_color=““ box_shadow_style=““ padding_top=““ padding_right=““ padding_bottom=““ padding_left=““ margin_top=““ margin_bottom=““ background_type=“single“ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_position=“left top“ background_repeat=“no-repeat“ background_blend_mode=“none“ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““ filter_type=“regular“ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″ last=“no“][fusion_separator style_type=“none“ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ sep_color=““ top_margin=“50″ bottom_margin=““ border_size=““ icon=““ icon_size=““ icon_circle=““ icon_circle_color=““ width=““ alignment=“center“ /][fusion_text columns=““ column_min_width=““ column_spacing=““ rule_style=“default“ rule_size=““ rule_color=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““]

Aufgabenstellung

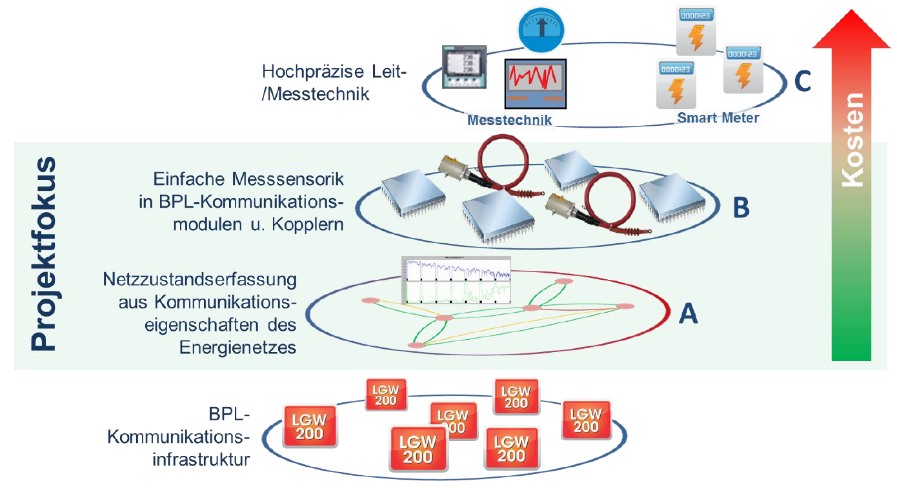

Diese Problematik aufgreifend soll „Fühler im Netz“ neue Möglichkeiten zur einfachen und günstigen Zustandsanalyse von Verteilnetzen und den angeschlossenen Anlagen entwickeln. Die Idee ist, Frequenzanalysen der Breitband-Powerline-Datenübertragung zu nutzen.

Ziel ist die Entwicklung eines Konzeptes für die systematische Nutzung der Kanaleigenschaften des BPL-Netzes zur Erfassung kritischer Netzzustände im Nieder-/Mittelspannungsbereich sowie zur Detektion von aktuellen bzw. absehbaren Störungen im Netz und bei Kundenanlagen. Die erfassten Zustandsdaten sollen in der Netzbetriebsführung und Ausbauplanung verwendet werden. Auch prüfen die Projektpartner, inwiefern sie zusätzliche Messdaten durch den Einbau einfacher Messsensorik im BPL-Netz effizienter erfassen können. Zudem steht die Entwicklung eines softwarebasierten Analysetools zur Interpretation der erfassten Parameter im Fokus.[/fusion_text][/fusion_builder_column][fusion_builder_column type=“1_2″ layout=“1_2″ spacing=““ center_content=“no“ link=““ target=“_self“ min_height=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ background_image_id=““ hover_type=“none“ border_size=“0″ border_color=““ border_style=“solid“ border_position=“all“ border_radius_top_left=““ border_radius_top_right=““ border_radius_bottom_right=““ border_radius_bottom_left=““ box_shadow=“no“ box_shadow_vertical=““ box_shadow_horizontal=““ box_shadow_blur=“0″ box_shadow_spread=“0″ box_shadow_color=““ box_shadow_style=““ padding_top=“10″ padding_right=“20″ padding_bottom=“20″ padding_left=“20″ margin_top=““ margin_bottom=““ background_type=“single“ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_position=“left top“ background_repeat=“no-repeat“ background_blend_mode=“none“ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““ filter_type=“regular“ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″ last=“no“][fusion_separator style_type=“none“ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ sep_color=““ top_margin=“50″ bottom_margin=““ border_size=““ icon=““ icon_size=““ icon_circle=““ icon_circle_color=““ width=““ alignment=“center“ /][fusion_text columns=““ column_min_width=““ column_spacing=““ rule_style=“default“ rule_size=““ rule_color=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““]

Projektergebnisse

Nach umfangreichen Recherchen, Untersuchungen und Analysen wurden die gewonnenen Erkenntnisse von den Projektpartnern in Laborversuchen sowie mittels eines Demonstrationsaufbaus und Feldtests auf ihre Praxistauglichkeit geprüft. Im Anschluss erfolgte die technische und wirtschaftliche Bewertung der Ergebnisse. Die gewonnenen Erkenntnisse wurden abschließend in einem Leitfaden zusammengefasst.

Das Projekt belegt die Netzdienlichkeit der Zustandserfassung mittels BPL-System. Es konnten sowohl die technische Machbarkeit, als auch der Mehrwert für die Netzbetriebsführung sowie das Assetmanagement nachgewiesen werden:

Echtzeit-Netzmonitoring (insb. in der Niederspannung)
Zustandserfassung von Anlagen (insb. in der Niederspannung)
Zustandserfassung von Kabeln (insb. in der Mittelspannung)

[/fusion_text][/fusion_builder_column][fusion_builder_column type=“1_2″ layout=“1_2″ spacing=““ center_content=“no“ link=““ target=“_self“ min_height=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ hover_type=“none“ border_size=“0″ border_color=““ border_style=“solid“ border_position=“all“ border_radius=““ box_shadow=“no“ dimension_box_shadow=““ box_shadow_blur=“0″ box_shadow_spread=“0″ box_shadow_color=““ box_shadow_style=““ padding_top=““ padding_right=““ padding_bottom=““ padding_left=““ margin_top=““ margin_bottom=““ background_type=“single“ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_image_id=““ background_position=“left top“ background_repeat=“no-repeat“ background_blend_mode=“none“ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““ filter_type=“regular“ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″ last=“no“][fusion_imageframe image_id=“4845|full“ max_width=““ style_type=““ blur=““ stylecolor=““ hover_type=“none“ bordersize=““ bordercolor=““ borderradius=““ align=“none“ lightbox=“no“ gallery_id=““ lightbox_image=““ lightbox_image_id=““ alt=““ link=““ linktarget=“_self“ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″]https://www.ppc.d-f.cc/wp-content/uploads/2020/07/fuehler_im_netz_grafik.png[/fusion_imageframe][/fusion_builder_column][fusion_builder_column type=“1_2″ layout=“1_2″ spacing=““ center_content=“no“ link=““ target=“_self“ min_height=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ background_image_id=““ hover_type=“none“ border_size=“0″ border_color=““ border_style=“solid“ border_position=“all“ border_radius_top_left=““ border_radius_top_right=““ border_radius_bottom_right=““ border_radius_bottom_left=““ box_shadow=“no“ box_shadow_vertical=““ box_shadow_horizontal=““ box_shadow_blur=“0″ box_shadow_spread=“0″ box_shadow_color=““ box_shadow_style=““ padding_top=““ padding_right=““ padding_bottom=““ padding_left=““ margin_top=“130″ margin_bottom=““ background_type=“single“ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_position=“left top“ background_repeat=“no-repeat“ background_blend_mode=“none“ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““ filter_type=“regular“ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″ last=“no“][fusion_text columns=““ column_min_width=““ column_spacing=““ rule_style=“default“ rule_size=““ rule_color=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““]Im Rahmen von „Fühler im Netz“ soll der Netzzustand im Nieder- und Mittelspannungsbereich auf zwei Arten erfasst werden: zum einen über die Analyse der BPL-Datenübertragung (Ebene A) und zum anderen mittels einfacher Messsensorik (Ebene B).[/fusion_text][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=“no“ hundred_percent_height=“no“ hundred_percent_height_scroll=“no“ hundred_percent_height_center_content=“yes“ equal_height_columns=“no“ menu_anchor=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ status=“published“ publish_date=““ class=““ id=““ link_color=““ link_hover_color=““ border_size=““ border_color=““ border_style=“solid“ margin_top=““ margin_bottom=““ padding_top=““ padding_right=““ padding_bottom=““ padding_left=““ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_position=“center center“ background_repeat=“no-repeat“ fade=“no“ background_parallax=“none“ enable_mobile=“no“ parallax_speed=“0.3″ background_blend_mode=“none“ video_mp4=““ video_webm=““ video_ogv=““ video_url=““ video_aspect_ratio=“16:9″ video_loop=“yes“ video_mute=“yes“ video_preview_image=““ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″][fusion_builder_row][fusion_builder_column type=“3_4″ layout=“1_2″ spacing=““ center_content=“no“ link=““ target=“_self“ min_height=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ hover_type=“none“ border_size=“0″ border_color=““ border_style=“solid“ border_position=“all“ border_radius=““ box_shadow=“no“ dimension_box_shadow=““ box_shadow_blur=“0″ box_shadow_spread=“0″ box_shadow_color=““ box_shadow_style=““ padding_top=““ padding_right=““ padding_bottom=““ padding_left=““ margin_top=““ margin_bottom=““ background_type=“single“ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_image_id=““ background_position=“left top“ background_repeat=“no-repeat“ background_blend_mode=“none“ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““ filter_type=“regular“ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″ last=“no“][fusion_text columns=““ column_min_width=““ column_spacing=““ rule_style=“default“ rule_size=““ rule_color=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““]

Produktentwicklung

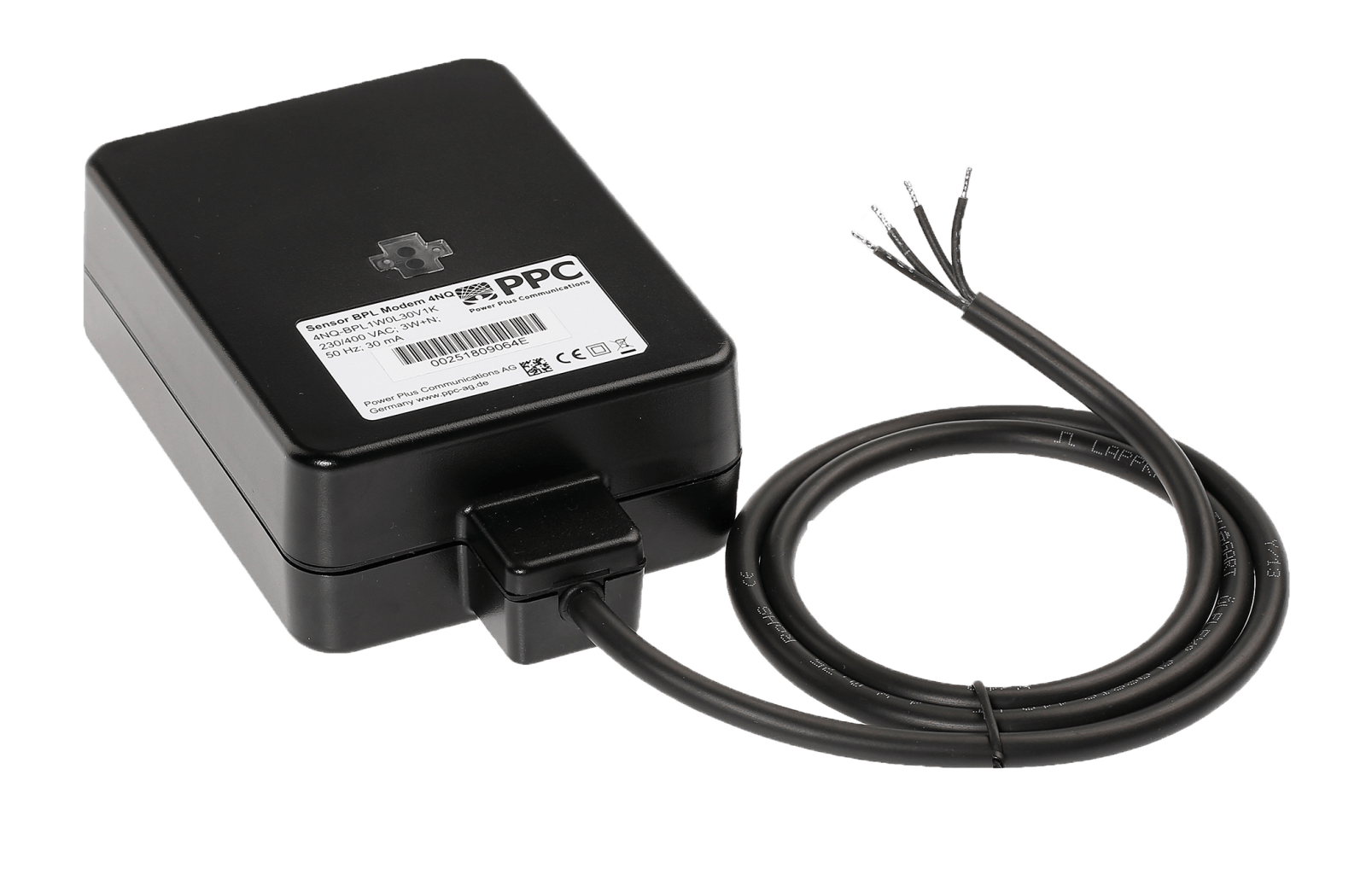

Aufbauend auf den Ergebnissen des Projektes wurde das Sensor BPL-Modem 4NQ entwickelt.

Das Modem verfügt über eine integrierte Spannungssensorik für alle drei Phasen. Hierdurch wird eine flächendeckende Spannungsmessung ermöglicht, mit der sich Netzzustände kontinuierlich erfassen und analysieren lassen. Für alle drei Phasen werden folgende kontinuierliche Messungen ermöglicht:

Spannungen
Phasenwinkel (zwischen den Spannungen)
THD (Total Harmonic Distortion)

[/fusion_text][fusion_separator style_type=“none“ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ sep_color=““ top_margin=“50″ bottom_margin=““ border_size=““ icon=““ icon_size=““ icon_circle=““ icon_circle_color=““ width=““ alignment=“center“ /][/fusion_builder_column][fusion_builder_column type=“1_4″ layout=“1_2″ spacing=““ center_content=“no“ link=““ target=“_self“ min_height=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ hover_type=“none“ border_size=“0″ border_color=““ border_style=“solid“ border_position=“all“ border_radius=““ box_shadow=“no“ dimension_box_shadow=““ box_shadow_blur=“0″ box_shadow_spread=“0″ box_shadow_color=““ box_shadow_style=““ padding_top=““ padding_right=““ padding_bottom=““ padding_left=““ margin_top=““ margin_bottom=““ background_type=“single“ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_image_id=““ background_position=“left top“ background_repeat=“no-repeat“ background_blend_mode=“none“ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““ filter_type=“regular“ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″ last=“no“][fusion_imageframe image_id=“4584|full“ max_width=““ style_type=““ blur=““ stylecolor=““ hover_type=“zoomin“ bordersize=““ bordercolor=““ borderradius=““ align=“none“ lightbox=“no“ gallery_id=““ lightbox_image=““ lightbox_image_id=““ alt=““ link=““ linktarget=“_blank“ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″]https://www.ppc.d-f.cc/wp-content/uploads/2020/06/Sensor-BPL-Modem-4NQ_seite_frei_web-1607×1024-1.png[/fusion_imageframe][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=“no“ hundred_percent_height=“no“ hundred_percent_height_scroll=“no“ hundred_percent_height_center_content=“yes“ equal_height_columns=“no“ menu_anchor=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ status=“published“ publish_date=““ class=““ id=““ link_color=““ link_hover_color=““ border_size=““ border_color=““ border_style=“solid“ margin_top=““ margin_bottom=““ padding_top=““ padding_right=““ padding_bottom=“30″ padding_left=““ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=“#c4ced4″ background_image=““ background_position=“center center“ background_repeat=“no-repeat“ fade=“no“ background_parallax=“none“ enable_mobile=“no“ parallax_speed=“0.3″ background_blend_mode=“none“ video_mp4=““ video_webm=““ video_ogv=““ video_url=““ video_aspect_ratio=“16:9″ video_loop=“yes“ video_mute=“yes“ video_preview_image=““ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″][fusion_builder_row][fusion_builder_column type=“1_2″ layout=“1_2″ spacing=““ center_content=“no“ link=““ target=“_self“ min_height=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ background_image_id=““ hover_type=“none“ border_size=“0″ border_color=““ border_style=“solid“ border_position=“all“ border_radius_top_left=““ border_radius_top_right=““ border_radius_bottom_right=““ border_radius_bottom_left=““ box_shadow=“no“ box_shadow_vertical=““ box_shadow_horizontal=““ box_shadow_blur=“0″ box_shadow_spread=“0″ box_shadow_color=““ box_shadow_style=““ padding_top=““ padding_right=““ padding_bottom=““ padding_left=““ margin_top=““ margin_bottom=““ background_type=“single“ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_position=“left top“ background_repeat=“no-repeat“ background_blend_mode=“none“ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““ filter_type=“regular“ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″ last=“no“][fusion_separator style_type=“none“ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ sep_color=““ top_margin=“50″ bottom_margin=““ border_size=““ icon=““ icon_size=““ icon_circle=““ icon_circle_color=““ width=““ alignment=“center“ /][fusion_text columns=““ column_min_width=““ column_spacing=““ rule_style=“default“ rule_size=““ rule_color=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““]

Förderung

Das Projekt unter der Führung von PPC wurde mit einem Gesamtbudget von ca. 2,5 Millionen Euro im Rahmen der Initiative „Zukunftsfähige Stromnetze“ vom BMBF und BMWi gefördert. Die 3-jährige Projektlaufzeit hat im November 2014 begonnen und endete im Oktober 2017.
Projektpartner waren neben PPC:

[/fusion_text][/fusion_builder_column][fusion_builder_column type=“1_2″ layout=“1_2″ spacing=““ center_content=“no“ link=““ target=“_self“ min_height=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ background_image_id=““ hover_type=“none“ border_size=“0″ border_color=““ border_style=“solid“ border_position=“all“ border_radius_top_left=““ border_radius_top_right=““ border_radius_bottom_right=““ border_radius_bottom_left=““ box_shadow=“no“ box_shadow_vertical=““ box_shadow_horizontal=““ box_shadow_blur=“0″ box_shadow_spread=“0″ box_shadow_color=““ box_shadow_style=““ padding_top=“10″ padding_right=“20″ padding_bottom=“20″ padding_left=“20″ margin_top=““ margin_bottom=““ background_type=“single“ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_position=“left top“ background_repeat=“no-repeat“ background_blend_mode=“none“ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““ filter_type=“regular“ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″ last=“no“][fusion_separator style_type=“none“ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ sep_color=““ top_margin=“50″ bottom_margin=““ border_size=““ icon=““ icon_size=““ icon_circle=““ icon_circle_color=““ width=““ alignment=“center“ /][fusion_imageframe image_id=“4851|full“ max_width=““ style_type=““ blur=““ stylecolor=““ hover_type=“none“ bordersize=““ bordercolor=““ borderradius=““ align=“none“ lightbox=“no“ gallery_id=““ lightbox_image=““ lightbox_image_id=““ alt=““ link=“http://www.fuehler-im-netz.de/“ linktarget=“_blank“ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″]https://www.ppc.d-f.cc/wp-content/uploads/2020/07/Logo_Stromnetze_gefoerdert.png[/fusion_imageframe][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=“no“ hundred_percent_height=“no“ hundred_percent_height_scroll=“no“ hundred_percent_height_center_content=“yes“ equal_height_columns=“no“ menu_anchor=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ status=“published“ publish_date=““ class=““ id=““ link_color=““ link_hover_color=““ border_size=““ border_color=““ border_style=“solid“ margin_top=““ margin_bottom=““ padding_top=““ padding_right=““ padding_bottom=““ padding_left=““ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_position=“center center“ background_repeat=“no-repeat“ fade=“no“ background_parallax=“none“ enable_mobile=“no“ parallax_speed=“0.3″ background_blend_mode=“none“ video_mp4=““ video_webm=““ video_ogv=““ video_url=““ video_aspect_ratio=“16:9″ video_loop=“yes“ video_mute=“yes“ video_preview_image=““ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″][fusion_builder_row][fusion_builder_column type=“1_1″ layout=“1_1″ spacing=““ center_content=“no“ link=““ target=“_self“ min_height=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ hover_type=“none“ border_size=“0″ border_color=““ border_style=“solid“ border_position=“all“ border_radius=““ box_shadow=“no“ dimension_box_shadow=““ box_shadow_blur=“0″ box_shadow_spread=“0″ box_shadow_color=““ box_shadow_style=““ padding_top=““ padding_right=““ padding_bottom=““ padding_left=““ margin_top=““ margin_bottom=““ background_type=“single“ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_image_id=““ background_position=“left top“ background_repeat=“no-repeat“ background_blend_mode=“none“ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““ filter_type=“regular“ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″ last=“no“][fusion_separator style_type=“none“ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ sep_color=““ top_margin=“15″ bottom_margin=“15″ border_size=““ icon=““ icon_size=““ icon_circle=““ icon_circle_color=““ width=““ alignment=“center“ /][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=“no“ hundred_percent_height=“no“ hundred_percent_height_scroll=“no“ hundred_percent_height_center_content=“yes“ equal_height_columns=“no“ menu_anchor=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ status=“published“ publish_date=““ class=““ id=““ link_color=““ link_hover_color=““ border_size=““ border_color=““ border_style=“solid“ margin_top=““ margin_bottom=““ padding_top=““ padding_right=““ padding_bottom=““ padding_left=““ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_position=“center center“ background_repeat=“no-repeat“ fade=“no“ background_parallax=“none“ enable_mobile=“no“ parallax_speed=“0.3″ background_blend_mode=“none“ video_mp4=““ video_webm=““ video_ogv=““ video_url=““ video_aspect_ratio=“16:9″ video_loop=“yes“ video_mute=“yes“ video_preview_image=““ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″][fusion_builder_row][fusion_builder_column type=“1_1″ layout=“1_1″ spacing=““ center_content=“no“ link=““ target=“_self“ min_height=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ hover_type=“none“ border_size=“0″ border_color=““ border_style=“solid“ border_position=“all“ border_radius=““ box_shadow=“no“ dimension_box_shadow=““ box_shadow_blur=“0″ box_shadow_spread=“0″ box_shadow_color=““ box_shadow_style=““ padding_top=““ padding_right=““ padding_bottom=““ padding_left=““ margin_top=““ margin_bottom=““ background_type=“single“ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_image_id=““ background_position=“left top“ background_repeat=“no-repeat“ background_blend_mode=“none“ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““ filter_type=“regular“ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″ last=“no“][fusion_title title_type=“text“ rotation_effect=“bounceIn“ display_time=“1200″ highlight_effect=“circle“ loop_animation=“off“ highlight_width=“9″ highlight_top_margin=“0″ before_text=““ rotation_text=““ highlight_text=““ after_text=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ content_align=“left“ size=“3″ font_size=““ animated_font_size=““ fusion_font_family_title_font=““ fusion_font_subset_title_font=““ fusion_font_variant_title_font=““ line_height=““ letter_spacing=““ margin_top=““ margin_bottom=““ margin_top_mobile=““ margin_bottom_mobile=““ text_color=“#2d4966″ animated_text_color=““ highlight_color=““ style_type=“none“ sep_color=““ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““]

Alle Innovations- und Forschungsprojekte

[/fusion_title][fusion_portfolio layout=“grid“ picture_size=“default“ text_layout=“default“ grid_box_color=““ grid_element_color=““ grid_separator_style_type=““ grid_separator_color=““ columns=“4″ column_spacing=“20″ portfolio_masonry_grid_ratio=““ portfolio_masonry_width_double=““ one_column_text_position=“below“ equal_heights=“yes“ number_posts=“20″ portfolio_title_display=“title“ portfolio_text_alignment=“default“ padding_top=““ padding_right=““ padding_bottom=““ padding_left=““ filters=“no“ pull_by=“tag“ cat_slug=“mobilfunk-router“ exclude_cats=““ tag_slug=“innovationsprojekte“ exclude_tags=““ pagination_type=“none“ hide_url_params=“off“ offset=“0″ orderby=“date“ order=“DESC“ content_length=“no_text“ excerpt_length=““ strip_html=“yes“ carousel_layout=“title_on_rollover“ scroll_items=““ autoplay=“no“ show_nav=“yes“ mouse_scroll=“no“ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““ class=““ id=““ /][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][:en][fusion_builder_container hundred_percent=“no“ hundred_percent_height=“no“ hundred_percent_height_scroll=“no“ hundred_percent_height_center_content=“yes“ equal_height_columns=“no“ menu_anchor=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ status=“published“ publish_date=““ class=““ id=““ link_color=““ link_hover_color=““ border_size=““ border_color=““ border_style=“solid“ margin_top=““ margin_bottom=““ padding_top=““ padding_right=““ padding_bottom=““ padding_left=““ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_position=“center center“ background_repeat=“no-repeat“ fade=“no“ background_parallax=“none“ enable_mobile=“no“ parallax_speed=“0.3″ background_blend_mode=“none“ video_mp4=““ video_webm=““ video_ogv=““ video_url=““ video_aspect_ratio=“16:9″ video_loop=“yes“ video_mute=“yes“ video_preview_image=““ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″][fusion_builder_row][fusion_builder_column type=“1_1″ layout=“1_1″ spacing=““ center_content=“no“ link=““ target=“_self“ min_height=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ hover_type=“none“ border_size=“0″ border_color=““ border_style=“solid“ border_position=“all“ border_radius=““ box_shadow=“no“ dimension_box_shadow=““ box_shadow_blur=“0″ box_shadow_spread=“0″ box_shadow_color=““ box_shadow_style=““ padding_top=““ padding_right=““ padding_bottom=““ padding_left=““ margin_top=““ margin_bottom=““ background_type=“single“ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_image_id=““ background_position=“left top“ background_repeat=“no-repeat“ background_blend_mode=“none“ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““ filter_type=“regular“ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″ last=“no“][fusion_title title_type=“text“ rotation_effect=“bounceIn“ display_time=“1200″ highlight_effect=“circle“ loop_animation=“off“ highlight_width=“9″ highlight_top_margin=“0″ before_text=““ rotation_text=““ highlight_text=““ after_text=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ content_align=“left“ size=“2″ font_size=““ animated_font_size=““ fusion_font_family_title_font=““ fusion_font_subset_title_font=““ fusion_font_variant_title_font=““ line_height=““ letter_spacing=““ margin_top=““ margin_bottom=““ margin_top_mobile=““ margin_bottom_mobile=““ text_color=“#2d4966″ animated_text_color=““ highlight_color=““ style_type=“none“ sep_color=““ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““]

Government-funded project “Fühler im Netz”

Our electricity grids feature a growing number of decentralised systems; feeding electricity produced by renewable energy sources into the local distribution grid. Fluctuating according to the weather and time of day, photovoltaic systems and wind turbines affect grid stability and can endanger the security of supply. It becomes even more important to constantly monitor and record network status.

To ensure the supply security and grid stability in Germany in the future, the detailed recording of the grid status will play an important role. Only in this way will it be possible for those responsible to detect plant and grid faults at an early stage and take corrective action.

The data we need is already available

In order to address this problem, the project „Fühler im Netz (FiN) (Sensors in the Grid)“ intends to investigate new and cost-effective ways of recording the grid status and detecting faults, specifically the use of Broadband over Power Line (BPL) technology. BPL is used for communicatively linking different applications in the electricity grid.

Watch the Fühler im Netz animation

„BPL is an attractive communication technologie because with BPL electricity grids and telecommunication grids converge in an intelligent way.“

Prof. Dr.-Ing. Markus Zdrallek of the Bergischen Universität Wuppertal.[/fusion_tagline_box][fusion_separator style_type=“none“ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ sep_color=““ top_margin=“50″ bottom_margin=““ border_size=““ icon=““ icon_size=““ icon_circle=““ icon_circle_color=““ width=““ alignment=“center“ /][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=“no“ hundred_percent_height=“no“ hundred_percent_height_scroll=“no“ hundred_percent_height_center_content=“yes“ equal_height_columns=“no“ menu_anchor=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ status=“published“ publish_date=““ class=““ id=““ link_color=““ link_hover_color=““ border_size=““ border_color=““ border_style=“solid“ margin_top=““ margin_bottom=“50″ padding_top=““ padding_right=““ padding_bottom=“50″ padding_left=““ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=“#c4ced4″ background_image=““ background_position=“center center“ background_repeat=“no-repeat“ fade=“no“ background_parallax=“none“ enable_mobile=“no“ parallax_speed=“0.3″ background_blend_mode=“none“ video_mp4=““ video_webm=““ video_ogv=““ video_url=““ video_aspect_ratio=“16:9″ video_loop=“yes“ video_mute=“yes“ video_preview_image=““ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″][fusion_builder_row][fusion_builder_column type=“1_3″ layout=“1_2″ spacing=““ center_content=“no“ link=““ target=“_self“ min_height=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ hover_type=“none“ border_size=“0″ border_color=““ border_style=“solid“ border_position=“all“ border_radius=““ box_shadow=“no“ dimension_box_shadow=““ box_shadow_blur=“0″ box_shadow_spread=“0″ box_shadow_color=““ box_shadow_style=““ padding_top=““ padding_right=““ padding_bottom=““ padding_left=““ margin_top=““ margin_bottom=““ background_type=“single“ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_image_id=““ background_position=“left top“ background_repeat=“no-repeat“ background_blend_mode=“none“ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““ filter_type=“regular“ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″ last=“no“][fusion_imageframe image_id=“7344|full“ max_width=““ style_type=““ blur=““ stylecolor=““ hover_type=“none“ bordersize=““ bordercolor=““ borderradius=““ align=“none“ lightbox=“no“ gallery_id=““ lightbox_image=““ lightbox_image_id=““ alt=““ link=““ linktarget=“_self“ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″]https://www.ppc.d-f.cc/wp-content/uploads/2020/10/stromnetze_1.jpg[/fusion_imageframe][/fusion_builder_column][fusion_builder_column type=“2_3″ layout=“1_2″ spacing=““ center_content=“no“ link=““ target=“_self“ min_height=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ background_image_id=““ hover_type=“none“ border_size=“0″ border_color=““ border_style=“solid“ border_position=“all“ border_radius_top_left=““ border_radius_top_right=““ border_radius_bottom_right=““ border_radius_bottom_left=““ box_shadow=“no“ box_shadow_vertical=““ box_shadow_horizontal=““ box_shadow_blur=“0″ box_shadow_spread=“0″ box_shadow_color=““ box_shadow_style=““ padding_top=““ padding_right=““ padding_bottom=““ padding_left=““ margin_top=“130″ margin_bottom=““ background_type=“single“ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_position=“left top“ background_repeat=“no-repeat“ background_blend_mode=“none“ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““ filter_type=“regular“ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″ last=“no“][fusion_text columns=““ column_min_width=““ column_spacing=““ rule_style=“default“ rule_size=““ rule_color=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““]A BPL infrastructure already contains a considerable amount of grid data that can provide information about the grid status and possible faults – without having to rely on additional detection technology. So far, however, no one has systematically studied this aspect.

In the FiN project, the engineers want to verify the extent to which they can generate reliable information during the grid operation and when recording status data based on the BPL channel characteristics.

In addition, they are examining the extent to which they can efficiently collect additional measurement data by installing simple and cost-effective measurement sensors in the Broadband over Power Line grid.

Together with the analysis of the BPL channel characteristics, they then want to generate sufficient status and operational information in order to be able to conclusively assess the grid status.[/fusion_text][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=“no“ hundred_percent_height=“no“ hundred_percent_height_scroll=“no“ hundred_percent_height_center_content=“yes“ equal_height_columns=“no“ menu_anchor=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ status=“published“ publish_date=““ class=““ id=““ link_color=““ link_hover_color=““ border_size=““ border_color=““ border_style=“solid“ margin_top=““ margin_bottom=““ padding_top=““ padding_right=““ padding_bottom=“30″ padding_left=““ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=“#c4ced4″ background_image=““ background_position=“center center“ background_repeat=“no-repeat“ fade=“no“ background_parallax=“none“ enable_mobile=“no“ parallax_speed=“0.3″ background_blend_mode=“none“ video_mp4=““ video_webm=““ video_ogv=““ video_url=““ video_aspect_ratio=“16:9″ video_loop=“yes“ video_mute=“yes“ video_preview_image=““ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″][fusion_builder_row][fusion_builder_column type=“2_3″ layout=“1_2″ spacing=““ center_content=“no“ link=““ target=“_self“ min_height=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ background_image_id=““ hover_type=“none“ border_size=“0″ border_color=““ border_style=“solid“ border_position=“all“ border_radius_top_left=““ border_radius_top_right=““ border_radius_bottom_right=““ border_radius_bottom_left=““ box_shadow=“no“ box_shadow_vertical=““ box_shadow_horizontal=““ box_shadow_blur=“0″ box_shadow_spread=“0″ box_shadow_color=““ box_shadow_style=““ padding_top=““ padding_right=““ padding_bottom=““ padding_left=““ margin_top=““ margin_bottom=““ background_type=“single“ gradient_start_color=““ gradient_end_color=““ gradient_start_position=“0″ gradient_end_position=“100″ gradient_type=“linear“ radial_direction=“center center“ linear_angle=“180″ background_color=““ background_image=““ background_position=“left top“ background_repeat=“no-repeat“ background_blend_mode=“none“ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““ filter_type=“regular“ filter_hue=“0″ filter_saturation=“100″ filter_brightness=“100″ filter_contrast=“100″ filter_invert=“0″ filter_sepia=“0″ filter_opacity=“100″ filter_blur=“0″ filter_hue_hover=“0″ filter_saturation_hover=“100″ filter_brightness_hover=“100″ filter_contrast_hover=“100″ filter_invert_hover=“0″ filter_sepia_hover=“0″ filter_opacity_hover=“100″ filter_blur_hover=“0″ last=“no“][fusion_separator style_type=“none“ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ sep_color=““ top_margin=“50″ bottom_margin=““ border_size=““ icon=““ icon_size=““ icon_circle=““ icon_circle_color=““ width=““ alignment=“center“ /][fusion_text columns=““ column_min_width=““ column_spacing=““ rule_style=“default“ rule_size=““ rule_color=““ hide_on_mobile=“small-visibility,medium-visibility,large-visibility“ class=““ id=““ animation_type=““ animation_direction=“left“ animation_speed=“0.3″ animation_offset=““]

Government-funded project

Power Plus Communications is the consortium leader of this project, which is supported by the German government with EUR 2,5 Million. It started in November 2014 and will presumably end in October 2017.

Participants:
